Încălzire inducție,incalzire inductie, topire metale,induction heating

PREȚ: 460 RON
Proprietar
PREȚ: 460 RON
Gropnița 17.10.26 Vizualizări 5446


Sumele Licitate
Această licitație nu are încă oferte
Oferta ta: RON
Vizualizări 5446
17.10.2026

Electronice și Electrocasnice


Descriere

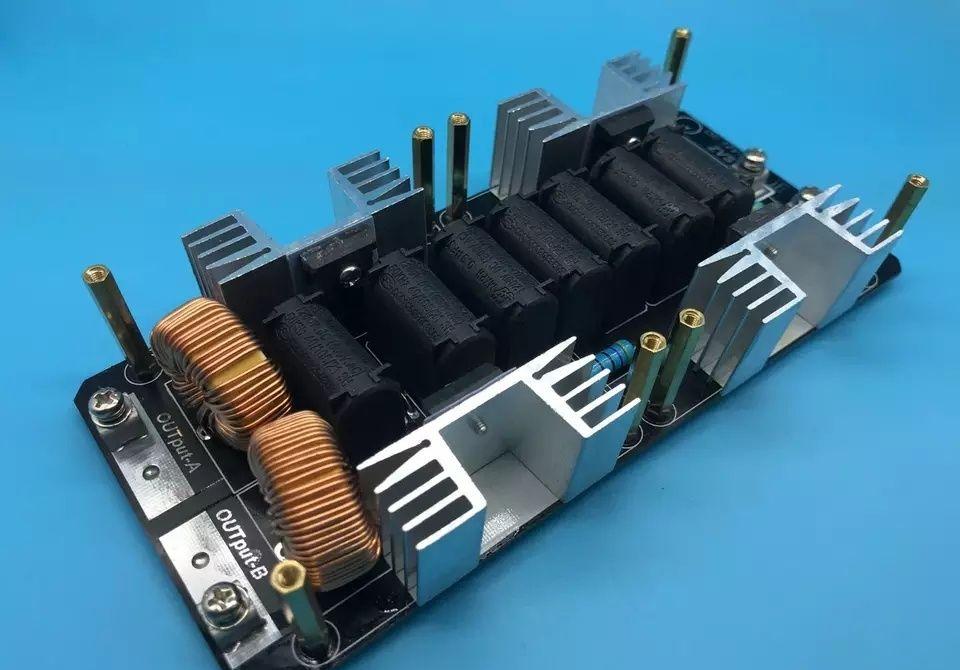

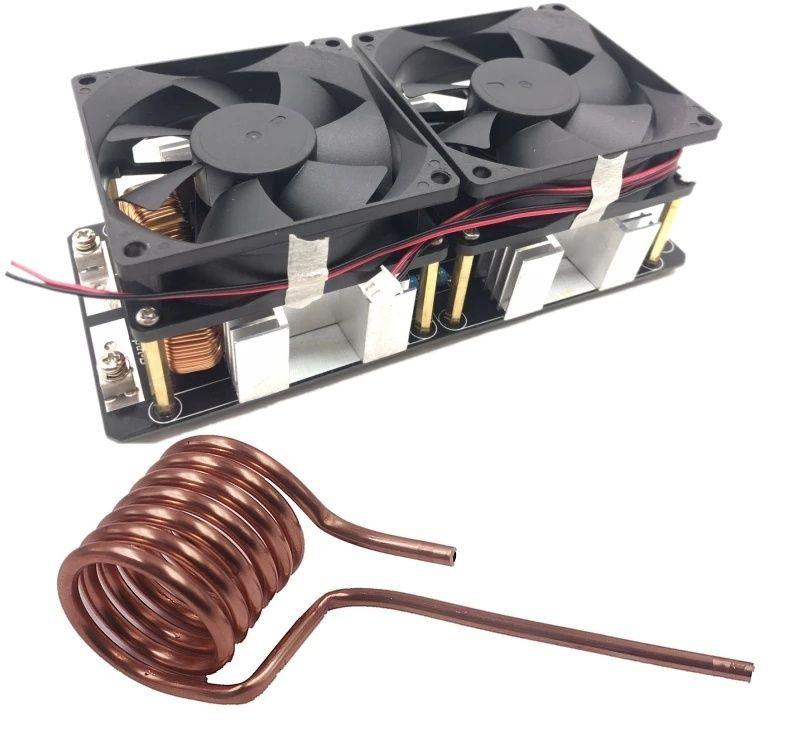

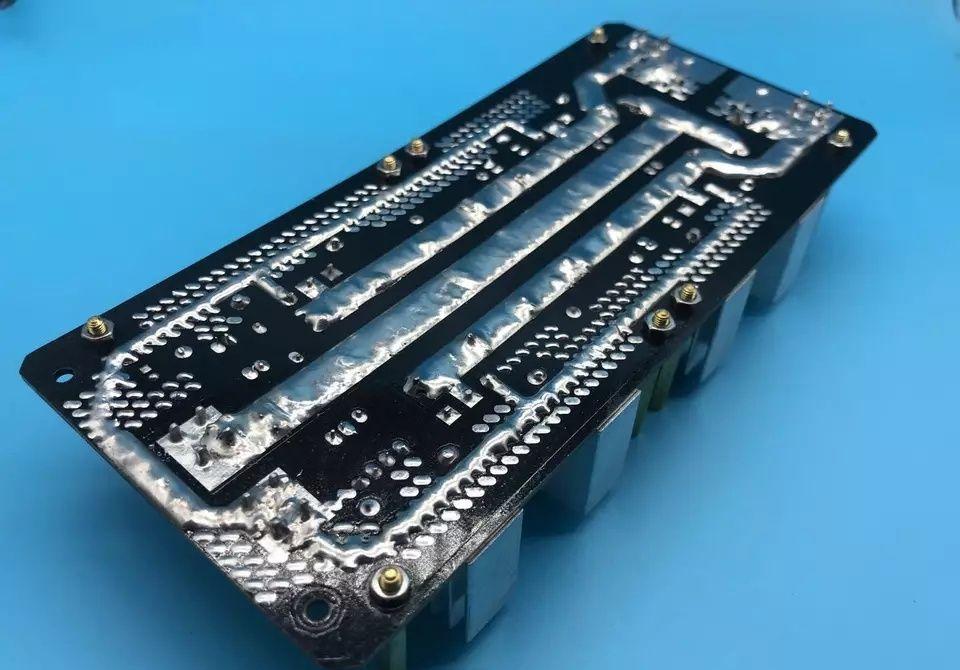

2000W-2400W 48V 50A ZVS Low voltage induction heating board Power supply module Flyback Driver Heater Tesla coil Heaters 460 lei fără serpentina de cupru (o poți face singur cu țeava de cupru de 6 MM)

500 lei cu serpentina de cupru de 6 MM. Are diametrul interior de 40 MM

Este nou sigilat.
E 25 lei drumul cu AWB fan Courier cu deschidere la livrare.

Main parameters:

        Voltage: DC voltage 12-48V
        Size: 185X83MM
         Current: 6-8A (standby)

        Fan: DC voltage 24V
        Protection: No
        Max Power: 2000W

Recommended power supply: Voltage: DC voltage 48V Current: 50A Power: 2400W

Pay attention to the heating coil: The induction heating power supply must be at least 24V10A
(Small Power supply will damage this ZVS)

Notice: Buyer need Welding thick copper wire On the Output Terminal and the Copper Tube

1:     buyer need self-provided power and water cooling device

2:    The use of switching power supply, Please note that due to high power are generally slow start function, which just opened machine output voltage is slowly rising, while it is turned on before the induction heating circuit if the voltage rises to 12V, because start insufficient voltage can not afford to vibration, resulting in two simultaneous conduction mos tube so burned components.

3. The volume of heated objects cannot be more than 1/10 of the heating coil internal volume (that is, the heating cylinder diameter more than 1/3 heating coil diameter), otherwise it may because of overload and burned circuit or the power supply
